How to create and deploy a basic Site Definition

. Monday, February 22, 2010
0 comments

A Site Definition provides the underlying structure of a site. It defines the site navigation, available features, document and list templates, initial lists and libraries, webparts available to a site when first created. Site Definitions provide a template for creating sites and can be re-used. Any change to the site definition is reflected across all the sites that are already created and those that shall be created in the future.

Site Definitions differ from site templates that are created by saving a site (non-publishing) as a site template using site settings menu options. Sites created using Site Definitions are ghosted or uncustomized while those created Site templates are un-ghosted or customized. Hence changes to site templates are not reflected in the site already created using them.

Let's have a look at the structural elements of a site definition.

Site definitions are located under 12\Template\SiteTemplates\ folder. It MAY contain following files: -

  1. ONET.XML - located under Site Templates\xml or 2\TEMPLATE\GLOBAL\XML folder. This is the manifest file for the site definition. It is a required file and is used to specify available configurations for a site.
  2. Default.aspx - located under SiteTemplates folder. This file defines the structure of the home page of site created using the site definition.
  3. Default.master - located under 12\Template\Global. It is used by all site definitions.
  4. Schema.xml - located under 12\TEMPLATE\GLOBAL\Lists.  It is used to define the schema (fields) for lists and libraries.
  5. STDVIEW.xml - located under 12\TEMPLATE\GLOBAL\XML. It defines view information for a site.
  6. VWSTYLES.xml - located under 2\TEMPLATE\GLOBAL\XML. It defines view information for lists/libraries.

Now that we've had an overview of various files that constitute a site definition, let's create one basic Site Definition.

  1. Go to 12\Template\Site Templates\ folder. Copy the folder named - STS and paste in a different work folder for custom-projects on your system.
  2. Go to 12\TEMPLATE\1033\XML. Copy WEBTEMP.XML and paste it to the projects work folder created in step1.
  3. Open Visual Studio 2005/2008. Create a new C# class library project named - SoftwareSiteDefinition. We'll create the following structure.

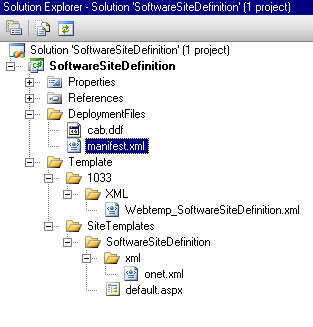

  4. image
  5. Create above folder structure without creating files. Once done, let's start adding files to them. Go to the folder copied in step 1. open the XML folder within it. Cut-paste ONET.XML file from it to Template\SiteTemplates\SoftwareSiteDefinition\xml\. Cut-paste default.aspx from copied folder in step 1 and paste under Template\SiteTemplates\SoftwareSiteDefinition\.
  6. Now go to the work folder created in step 1. Rename the WEBTEMP.XML file to Webtemp_SoftwareSiteDefinition.xml. Cut-paste this file to Template\1033\XML\ folder in above solution (step 3).
  7. Add a new xml file named - manifest.xml and a text file named- cab.ddf to DeploymentFiles folder. Once we've the files ready, let's start working on them.
  8. Open the Webtemp_SoftwareSiteDefinition.xml file.
  9. paste the below text: -

    <?xml version="1.0" encoding="utf-8"?>
    <!-- _lcid="1033" _version="12.0.4518" _dal="1" -->
    <!-- _LocalBinding -->
    <Templates xmlns:ows="Microsoft SharePoint">
      <Template Name="SoftwareSiteDefinition" ID="11000">
        <Configuration ID="0"
          Title="Software Development Project Site" Hidden="FALSE" ImageUrl="/_layouts/images/stsprev.png"
          Description="A site for managing Software Development projects."
          DisplayCategory="My Custom Templates" >
        </Configuration>
      </Template>
    </Templates>

  10. The name of the template is SoftwareSiteDefinition which should be unique in the 12\template\SiteTemplates folder. This would be the name of the Site definition folder created in above project. They should be identical and this is how the template file associates itself with its site definition.
  11. The configuration element specifies the available configurations/variations within a site definition. There can be multiple configuration elements within Template element. Title attribute specifies the name of configuration as it appears on create new site page. DisplayCategory specifies the tab under which the configuration would be available. Specify a new unique name to create a new tab. Template ID specifies the unique id of site definition. Use values > 10000.
  12. Now open the file - onet.xml from the solution project. We'll make some changes to this definition.
  13. NavBars element is used to specify initial navigation as it appears on the site. One can specify the quick launch navigation as well as top navigation. Paste the below code for navigation.

    <NavBars>
            <NavBar Name="$Resources:core,category_Top;" Separator="&amp;nbsp;&amp;nbsp;&amp;nbsp;" Body="&lt;a ID='onettopnavbar#LABEL_ID#' href='#URL#' accesskey='J'&gt;#LABEL#&lt;/a&gt;" ID="1002"/>
            <NavBar Name="$Resources:core,category_Documents;" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1004"/>
            <NavBar Name="$Resources:core,category_Lists;" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1003"/>
            <!--<NavBar Name="$Resources:core,category_Discussions;" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1006"/>-->
            <NavBar Name="$Resources:core,category_Sites;" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1026"/>
            <NavBar Name="$Resources:core,category_People;" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1027"/>
        <NavBar Name="Quick Links" Prefix="&lt;table border=0 cellpadding=4 cellspacing=0&gt;" Body="&lt;tr&gt;&lt;td&gt;&lt;table border=0 cellpadding=0 cellspacing=0&gt;&lt;tr&gt;&lt;td&gt;&lt;img src='/_layouts/images/blank.gif' ID='100' alt='' border=0&gt;&amp;nbsp;&lt;/td&gt;&lt;td valign=top&gt;&lt;a ID=onetleftnavbar#LABEL_ID# href='#URL#'&gt;#LABEL#&lt;/td&gt;&lt;/tr&gt;&lt;/table&gt;&lt;/td&gt;&lt;/tr&gt;" Suffix="&lt;/table&gt;" ID="1028">
          <NavBarLink Name="Google Chart" Url="
    http://code.google.com/apis/chart/" />
          <NavBarLink Name="Heather Solomon" Url="
    http://www.heathersolomon.com/blog/articles/MOSS07DesignComponents.aspx"/>
        </NavBar>

  14. As we can see, I have commented the discussions link from quick launch, since I don't want this list to appear. I also don't want this list to be create by default ( this'll be taken care of in later sections). I have also added a new navigation heading named - Quick Links which has two hyperlinks.
  15. Now go to the configuration section, remove all configurations but the one with ID=0.

    <Lists>
                    <List FeatureId="00BFEA71-E717-4E80-AA17-D0C71B360101" Type="101" Title="$Resources:core,shareddocuments_Title;" Url="$Resources:core,shareddocuments_Folder;" QuickLaunchUrl="$Resources:core,shareddocuments_Folder;/Forms/AllItems.aspx"/>
                    <!--<List FeatureId="00BFEA71-6A49-43FA-B535-D15C05500108" Type="108" Title="$Resources:core,discussions_Title;" Url="$Resources:core,lists_Folder;/$Resources:core,discussions_Folder;" QuickLaunchUrl="$Resources:core,lists_Folder;/$Resources:core,discussions_Folder;/AllItems.aspx" EmailAlias="$Resources:core,discussions_EmailAlias;"/>-->
                    <!--
            <List FeatureId="00BFEA71-D1CE-42de-9C63-A44004CE0104" Type="104" Title="$Resources:core,announceList;" Url="$Resources:core,lists_Folder;/$Resources:core,announce_Folder;">
                        <Data>
                            <Rows>
                                <Row>
                                    <Field Name="Title">$Resources:onetid11;</Field>
                                    <Field Name="Body">$Resources:onetid12;</Field>
                                    <Field Name="Expires">&lt;ows:TodayISO/&gt;</Field>
                                </Row>
                            </Rows>
                        </Data>
                    </List>
            -->
                    <List FeatureId="00BFEA71-2062-426C-90BF-714C59600103" Type="103" Title="$Resources:core,linksList;" Url="$Resources:core,lists_Folder;/$Resources:core,links_Folder;"/>
                    <List FeatureId="00BFEA71-EC85-4903-972D-EBE475780106" Type="106" Title="$Resources:core,calendarList;" Url="$Resources:core,lists_Folder;/$Resources:core,calendar_Folder;" QuickLaunchUrl="$Resources:core,lists_Folder;/$Resources:core,calendar_Folder;/Calendar.aspx" EmailAlias="$Resources:core,calendar_EmailAlias;"/>
                    <List FeatureId="00BFEA71-A83E-497E-9BA0-7A5C597D0107" Type="107" Title="$Resources:core,taskList;" Url="$Resources:core,lists_Folder;/$Resources:core,tasks_Folder;" QuickLaunchUrl="$Resources:core,lists_Folder;/$Resources:core,tasks_Folder;/AllItems.aspx"/>
                </Lists>

  16. I have commented the discussions and announcement list section, since I don't want it to appear in the pre-created lists. Remember that if a list is not created initially, it's references should also be removed from quick launch navigation.
  17. Remove all modules child elements of configuration element except the one named - Default. Now go to the Modules element which is a child element of Project and not configuration element. remove all modules except- Default.

    <Module Name="Default" Url="" Path="">
                <File Url="default.aspx" NavBarHome="True">
            <View List="$Resources:core,shareddocuments_Folder;" BaseViewID="0"  WebPartZoneID="Top" WebPartOrder="2"/>
                    <!--<View List="$Resources:core,lists_Folder;/$Resources:core,announce_Folder;" BaseViewID="0" WebPartZoneID="Left"/>-->
                    <View List="$Resources:core,lists_Folder;/$Resources:core,calendar_Folder;" BaseViewID="0" RecurrenceRowset="TRUE" WebPartZoneID="Left" WebPartOrder="2"/>
                    <AllUsersWebPart WebPartZoneID="Right" WebPartOrder="1"><![CDATA[
                       <WebPart xmlns="http://schemas.microsoft.com/WebPart/v2" xmlns:iwp="http://schemas.microsoft.com/WebPart/v2/Image">
                            <Assembly>Microsoft.SharePoint, Version=12.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c</Assembly>
                            <TypeName>Microsoft.SharePoint.WebPartPages.ImageWebPart</TypeName>
                            <FrameType>None</FrameType>
                            <Title>$Resources:wp_SiteImage;</Title>
                            <iwp:ImageLink>/_layouts/images/homepage.gif</iwp:ImageLink>
                            <iwp:AlternativeText>$Resources:core,sitelogo_wss;</iwp:AlternativeText>
                       </WebPart>
                       ]]></AllUsersWebPart>
                    <View List="$Resources:core,lists_Folder;/$Resources:core,links_Folder;" BaseViewID="0" WebPartZoneID="Right" WebPartOrder="2"/>
                    <NavBarPage Name="$Resources:core,nav_Home;" ID="1002" Position="Start"/>
                    <NavBarPage Name="$Resources:core,nav_Home;" ID="0" Position="Start"/>
                </File>
            </Module>

  18. This element will specify the views appearing on the home page and the navigations. Add a new view for - Shared Documents list. Ensure that the list is created in advance (step 15). Comment the announcement list view. Save the file.
  19. Now open default.aspx from the project.
  20. Add a new data row for containing a webpart zone which will span all the rows below.

    <table width="100%" cellpadding=0 cellspacing=0 style="padding: 5px 10px 10px 10px;">
              <tr>
               <td valign="top" width="100%" colspan="3">
                   <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="Top" Title="loc:Top" />
                   &nbsp;
               </td>
               </tr>
              <tr>
               <td valign="top" width="70%">
                   <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="Left" Title="loc:Left" />
                   &nbsp;
               </td>
               <td>&nbsp;</td>
               <td valign="top" width="30%">
                   <WebPartPages:WebPartZone runat="server" FrameType="TitleBarOnly" ID="Right" Title="loc:Right" />
                   &nbsp;
               </td>
               <td>&nbsp;</td>
              </tr>
             </table>
            </td>
          </tr>
        </table>

  21. Save the file.

Once the site definition is created, we need to create a deploy package for it.

Creating the WSP/solution package for Site definition

  1. open manifest.xml and make following entries.

    <?xml version="1.0" encoding="utf-8" ?>
    <Solution xmlns="http://schemas.microsoft.com/sharepoint/" SolutionId="0C07DA61-1542-4d49-BA09-2587B4125A63"
               DeploymentServerType="WebFrontEnd"
               ResetWebServer="False">
      <SiteDefinitionManifests>
        <!-- name of root folder of manifest of site definition within the WSP-->
        <SiteDefinitionManifest Location="SoftwareSiteDefinition">
          <!-- complete path of webtemp file within this solution package-->
          <WebTempFile Location="1033\XML\Webtemp_SoftwareSiteDefinition.xml"/>
        </SiteDefinitionManifest>
      </SiteDefinitionManifests>
    </Solution>

  2. Rt. click the file, select properties. Select the schema which should be WSS.xsd (xmlns=http://schemas.microsoft.com/sharepoint/) located in 12\template\xml.
  3. This file specifies the name of associated files. SiteDefinitionManifest Location specifies the name of the root folder of site definition within the WSP package. WebTempFile Location specifies the location and name of the webtemp files within the WSP package. hence the path is relative to WSP and not 12 hive.
  4. save the file and open cab.ddf. This is a diamond directive file.
  5. Paste the following.

    ;****** this file packages the files from solution to WSP
    .OPTION Explicit
    .Set Cabinet=On
    .Set CabinetNameTemplate=SoftwareSiteDefinition.wsp;****name of the wsp file
    .Set CompressionType=MSZIP
    .Set DiskDirectory1=MYWSP
    .Set DiskDirectoryTemplate=CDROM
    .Set UniqueFiles=Off

    ;*** include location of WSP manifest from root of the solution
    DeploymentFiles\manifest.xml

    ;*** include locations of onet,default.aspx and webtemp
    ;*** create subfolder within the WSP

    .Set DestinationDir=SoftwareSiteDefinition
    Template\SiteTemplates\SoftwareSiteDefinition\default.aspx

    .Set DestinationDir=SoftwareSiteDefinition\xml
    Template\SiteTemplates\SoftwareSiteDefinition\xml\onet.xml

    .Set DestinationDir=1033\XML
    Template\1033\XML\Webtemp_SoftwareSiteDefinition.xml

  6. We need to place all the necessary files from the solution project to the package so that they could be picked up by manifest.xml.
  7. The package will have following structure: - Two folders with following hierarchies.
  8. SoftwareSiteDefinition
    1. default.aspx
    2. xml
      1. onet.xml
  9. 1033
    1. XML
      1. Webtemp_SoftwareSiteDefinition.xml
  10. DeploymentFiles\manifest.xml
  11. DestinationDir allows us to create subfolders within the package. The locations below it specify the actual location of all four files within the project solution. save the file
  12. Go to command prompt. Browse to the root folder e.g. C:\SharepointCustomProjects\SoftwareSiteDefinition\SoftwareSiteDefinition.
  13. un makecab /f DeploymentFiles\manifest.xml. This will create a  package named - MYWSP under the root of the project which will contain a WSP cabinet file named - SoftwareSiteDefinition.wsp.



Sources:

Microsoft SharePoint Building office 2007 solutions in C# 2005 - Scot Hillier (APRESS).

Professional SharePoint 2007 Web Content Management Development - Andrew Connell (WROX)
